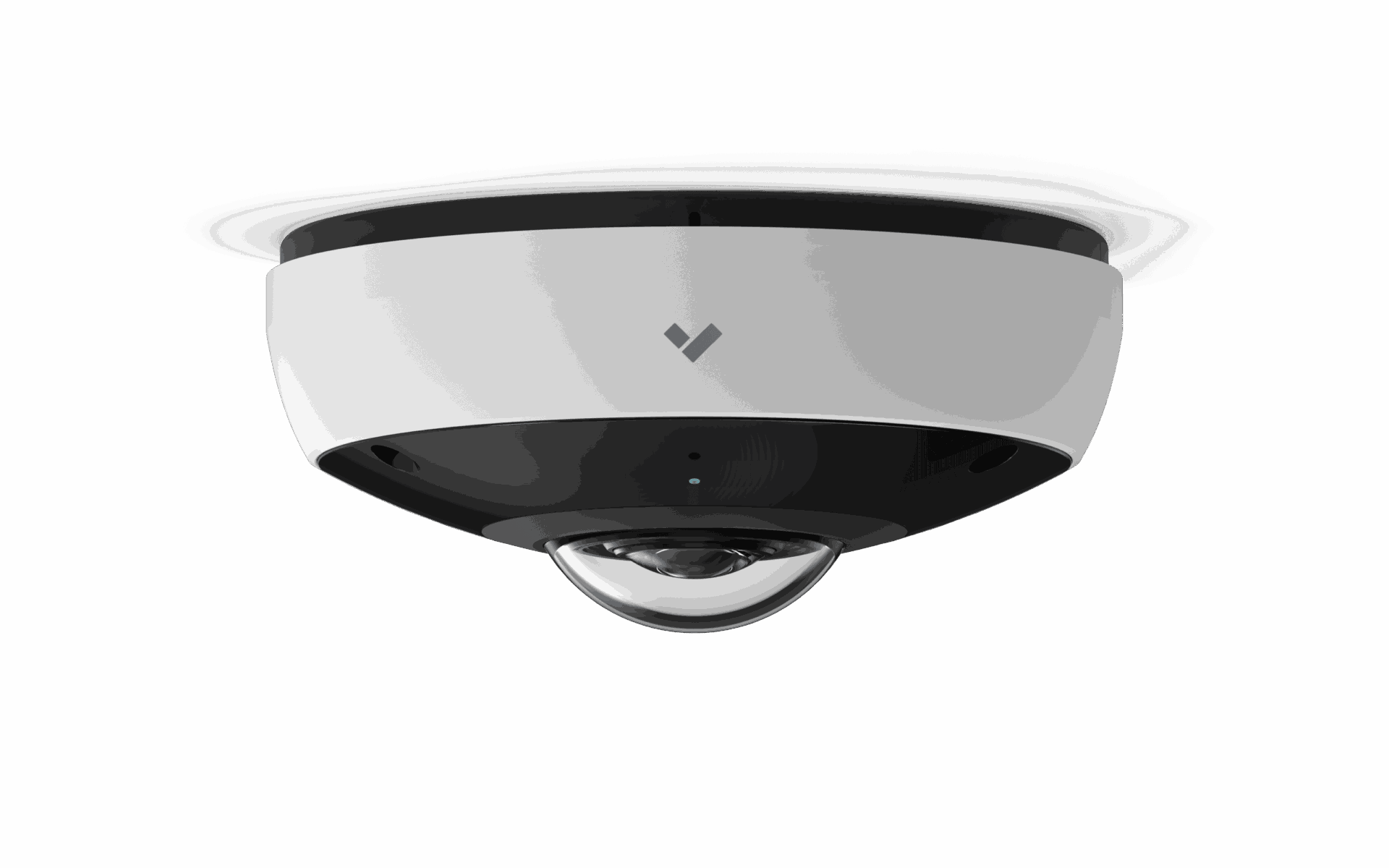

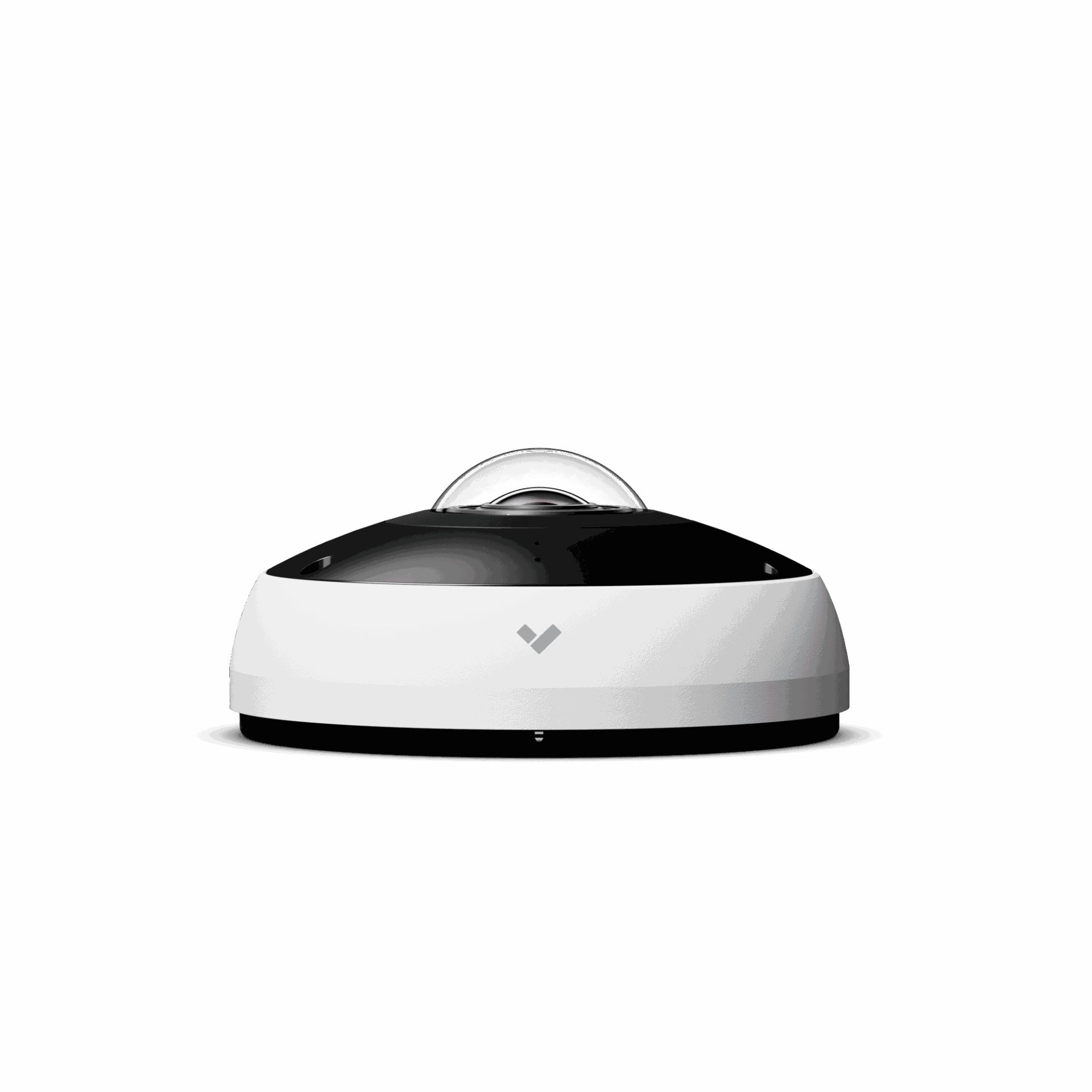

CF81-E Fisheye Indoor Outdoor Camera

CF81-E Fisheye Indoor Outdoor Camera

Product Specifications

Image Sensor

1/1.7″ Progressive CMOS

Dimensions with Mount Plate

Diameter: 155 mm / 6.1 in
Height: 74.5 mm / 2.84 in

Dimensions without Mount Plate

Diameter: 155 mm / 6.1 in
Height: 68 mm / 2.67 in

Image Resolution

12 MP (4000 x 3000)

IR Range

20 m / 65 ft

Lens Type

Fixed

Day/Night

IR-cut filter for day & night function

Focus

Fixed

Focal Length

1.29mm

Aperture

F2.2

Connectivity

1Gb RJ-45 cable connector for Network/PoE connection

Field of View

180° Horizontal
180° Vertical
180° Diagonal

Power Input

IEEE 802.3af PoE
IEEE 802.3at PoE+ – Extended temperature range

Iris

Fixed

Power Consumption

13W
24 W – Extended Temperature Range

Weight

816 g / 28.8 oz – Camera
187 g / 6.6 oz – Mount Plate

Certifications

IP66, IK10 vandal resistance, FCC, ICES, IEC62368

Operating Temperature

-20°C – 50°C / -4°F – 122°F, PoE 802.3af
-40°C – 50°C / -40°F – 122°F, PoE 802.3at

Humidity

90%

Included Accessories

Setup guide, T10 security Torx screwdriver, screw pack, mounting template, desiccant bag, water-proof connectors, pole mount straps, conduit adapter

LED Indicator

System power and status indicator

Panoramic views for seamless, 180° coverage in any environment.

12 MP Image Resolution
180 Field of View
20 M IR Range

Warranty

All Verkada hardware has a 10 year warranty from the date of shipment. For more information, click here.
